Machine tending

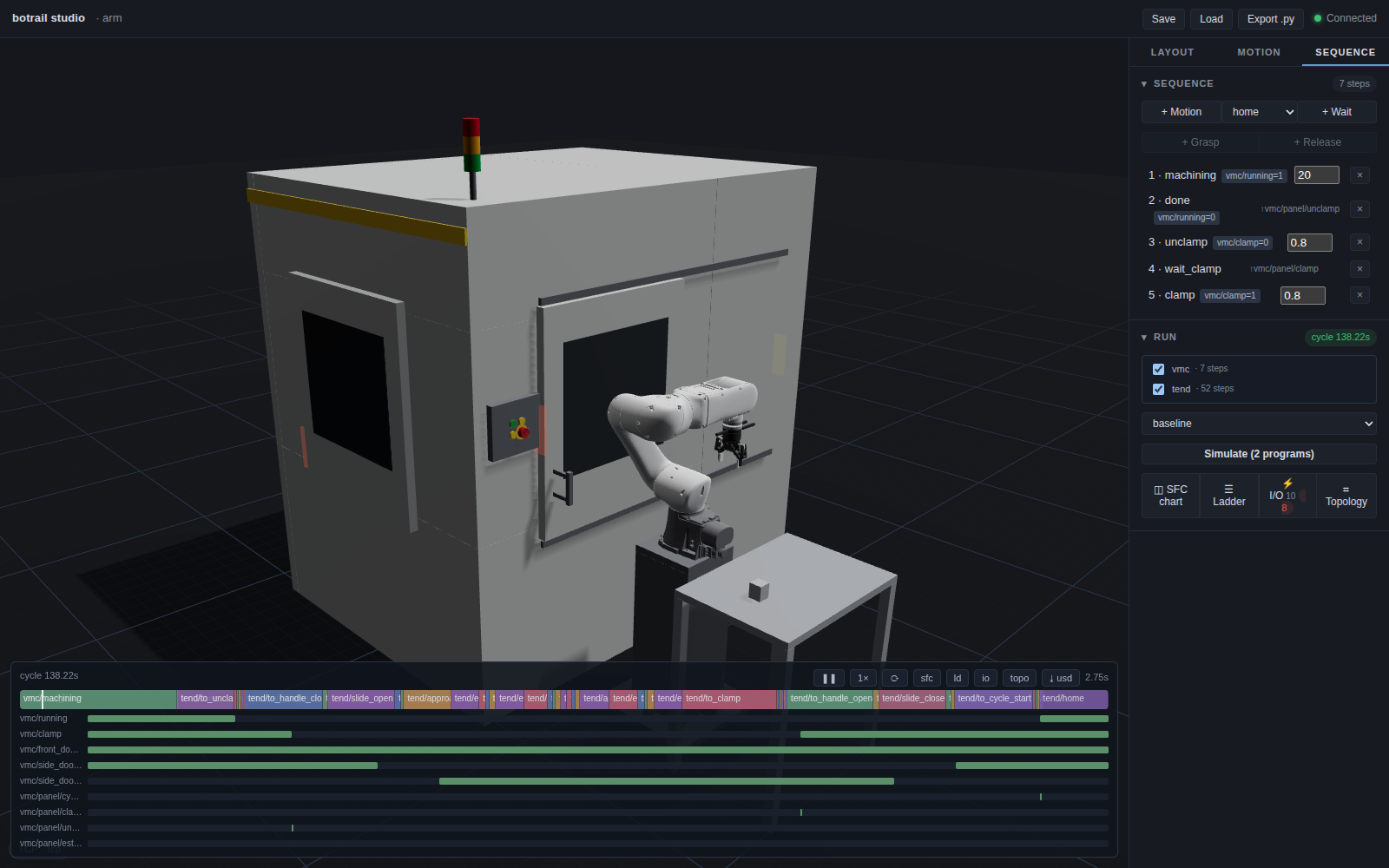

A robot at the side door of a machining centre, swapping the finished part in the vise for a blank between cycles — the cell every machine-tool builder photographs. botrail builds it from products and public figures: the machine is the envelopes a tending cell verifies against, its behaviour is one more PLC program scanned beside the robot's, and a button is a zone sensor as deep as its stroke.

import botrail as bt

vmc = bt.parts.machine_tool(scene, "vmc", door="servo", door_side="right",
                            panel="door", buttons=("cycle_start", "clamp", "unclamp", "estop"))
(tx, ty, tz), _ = scene.frame("vmc/table")
vise = bt.parts.vise(scene, "vise", (tx + 0.25, ty, tz), opening=0.054)

hs = bt.tending.fanuc_ri2(scene, vmc, cycle_s=42.0, clamp_s=0.8, notice_s=5.0)
tend = scene.sequence("tend")                       # the robot's program, by hand
tend.step("wait", transition=bt.seq.signal(hs.signal("notice")))
...
tl = scene.simulate_sequences(["tend", hs.program])

The worked example is examples/machining/machine_tending_demo.py: a MELFA ASSISTA on a catalog robot stand at a ROBODRILL-sized machine with no robot interface — the retrofit — worked through its door and its panel by a three-tool hand: a 2F-85 for the part, a pin for the buttons, a fork for the door handle.

The machine as envelopes

bt.parts.machine_tool stands a vertical machining centre as boxes, all of them collision-checked, none of them a shape: the enclosure with its front and side openings, the table at its exchange position (a table that traverses to the door is what a robot reaches), the spindle head retracted over it, the side door leaf sliding along the wall, and an operator panel. Without arguments it is the FANUC ROBODRILL α-D21MiB5 Plus of the public catalogue — the side auto-door opening 705 × 869 on an 827 mm sill, the 650 × 400 table, the 250–580 mm nose-to-table — and every figure is a parameter. The one number the catalogue does not print, the table's height above the floor, defaults to 0.90 m and is the first to replace when the drawing is at hand.

Why boxes: what a tending cell verifies is whether the arm and the part pass the opening, whether the wrist clears the head, whether the door shuts on anything — and those are answered by the opening, the head and the leaf, not by the sheet-metal profile a few centimetres away. A vendor's CAD, where its licence allows, layers over these as a mesh (scene.load_usd) and changes nothing the cell verifies.

Frames come with it: <name>/table, <name>/entry (where an arm waits, 150 mm outside the leaf), <name>/door/side/handle, and one per button. A plan that does not fit is refused with the numbers — an opening off its wall, a stroke off the body, a head through the roof — the way a wall plan that does not close is.

The door

door="servo" or "air" makes the leaf a linear axis <name>/side_door with two named stops: bt.seq.move_to(door, "open") opens it at the speed its drive is published to run (a servo door covers 800 mm in 0.8 s where an air cylinder takes 2 s), move_to(door, "closed") shuts it, and the stops' lanes <name>/side_door/closed and /open are the limit switches an interlock is written from — on the chart as lanes, on the I/O list as inputs. door="manual" leaves the leaf loose for a robot that takes the handle — attach the door_objects and run a cartesian_line along the wall — and two zone sensors under the same names read the loose leaf at its ends.

The door enforces itself. What an axis drives is checked against every robot each tick, the way two arms are checked against each other: a leaf the machine closes on an arm still inside stops the bake at that tick with a DeviceCollision naming the door, the leaf, the robot and the link. The classic mistake — the exchange reported done before the arm is out — is exactly that error, at the second the leaf meets the forearm.

Buttons

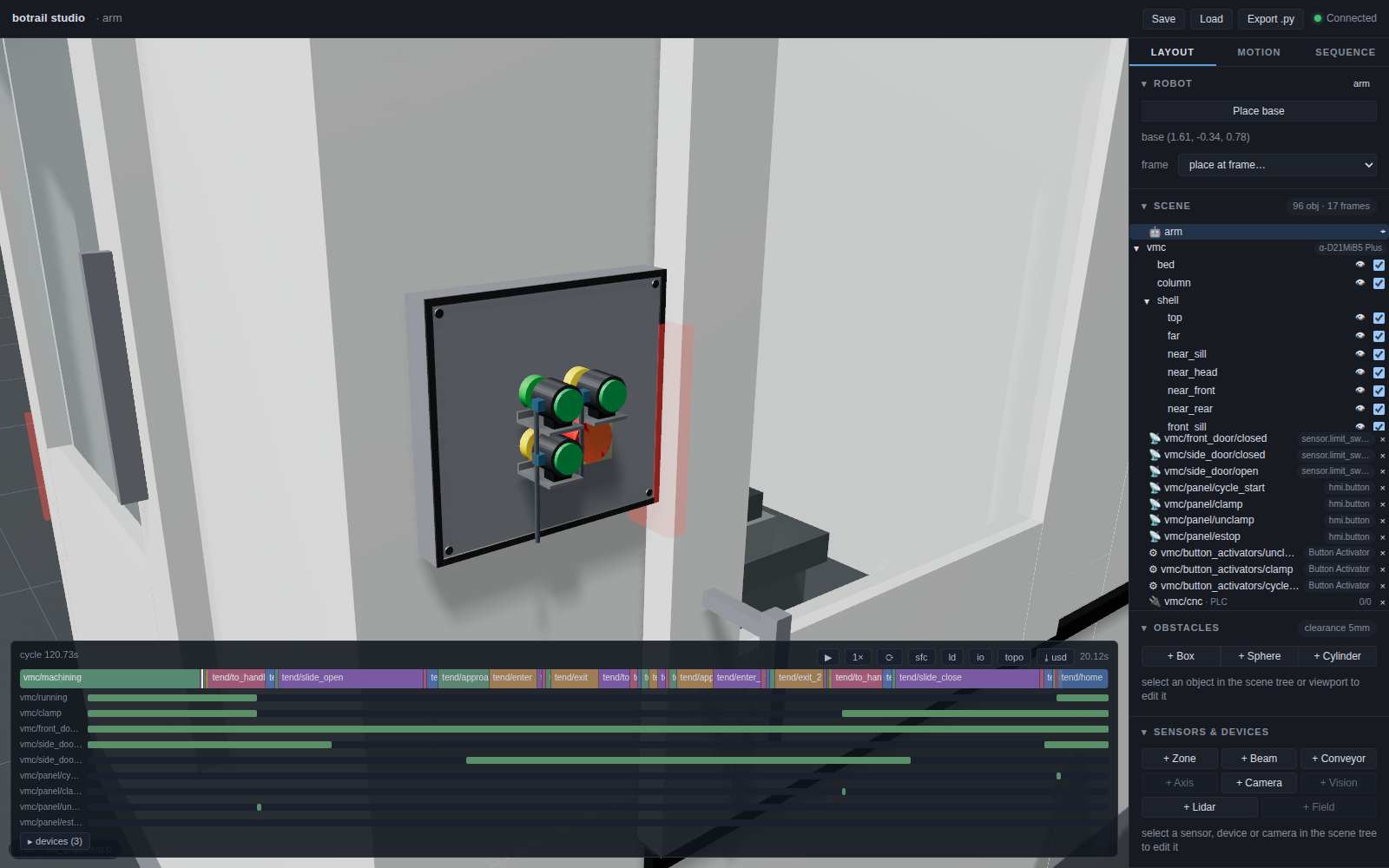

bt.parts.operator_panel puts a grid of 22 mm pushbuttons on a plate. Each is a cap (drawn, never collided), a zone sensor the size of the cap and as deep as the operating travel, sitting just inside the cap face, and two frames — <panel>/<button> on the face and <panel>/<button>/press 2.6 mm in, both with +Z into the panel. A tool that touches the cap reads nothing; one that pushes it the travel a 22 mm actuator has turns the input on for as long as it is held. Nothing moves: the stroke is a depth, and the input is the meaning. The E-stop is the ø40 mushroom with its 44 N on the bill, and the neighbour's zone is the check that a wide tool did not press two.

The vise

bt.parts.vise stands a vise on the table with its jaws opening apart and the frame <name>/jaw on the jaw floor between them. Clamping is a signal the machine's program writes, not a jaw that moves; an opening past the vise's maximum is refused.

Ordering the machine

The envelopes are what a catalog pack carries. A machine tool's pack (kind: spec, category machine_tool.vmc) has no geometry — it has mechanical.envelope (the openings with their sills and strokes, the table, the spindle nose to table), the options the maker sells (column_mm, side_door, door_side), the published door times, and an interface: the handshake template and the maker's signal table. Pass its id and the generator reads all of it:

vmc = bt.parts.machine_tool(scene, "vmc", catalog="fanuc/robodrill/alpha-d21mib5-plus",
                            side_door="servo", door_side="right", panel="door", buttons=BUTTONS)
vise = bt.parts.vise(scene, "vise", (tx + 0.25, ty, tz), catalog="botrail/fixture/vise-125",
                     jaw_width=0.125, opening=0.054)
hs = bt.tending.fanuc_ri2(scene, vmc)        # checks the pack's template

A drive the pack does not sell is refused with the ones it does, and a door a robot slides (door="manual") takes the pack's leaf and stroke without ordering a drive; the machine, its side door and its panel land on the bill with the pack's article numbers; a pushbutton box (botrail/hmi/button-box-22) orders the same way by its number of positions. And the opening decides the arm before anything is taught: scene.requirements() asks the robot beside the machine for the reach to its table, so bt.catalog.search_for lists the arms that can serve it. The demo's --catalog builds the cell this way.

A lathe

bt.parts.lathe is the turning counterpart: the Haas ST-10 of the public spec pages as boxes — a 3.20 m body, the front door opening centred on the spindle, the headstock and the spindle nose <name>/spindle (+Z along the axis toward the tailstock), the turret's envelope beside it — and the same door vocabulary on the front door, which is the one a robot loads through: a linear axis with closed / open stops, or a loose leaf with two limit switches. The chuck is a part of its own, mounted on the spindle frame:

lathe = bt.parts.lathe(scene, "lathe", door="manual")
chuck = bt.parts.chuck(scene, "chuck", *scene.frame("lathe/spindle"), opening=0.050)
hs = bt.tending.manual(scene, lathe, buttons=("unclamp", "clamp", "cycle_start"))

<chuck>/face is what a load aims at — a part comes in along its -Z, the jaws stand proud of the face around the gripping diameter, and bt.tending takes the lathe as it takes a machining centre (its one door is the front door, so no door-exclusivity guard applies). What no public page prints — the opening, the spindle's height and depth — are design values, the first to replace from a drawing.

The machine's program

A machine tool is not a device the robot commands. It runs a part program and talks in a fixed vocabulary — for FANUC's Robot Interface 2: M62 announces the end of the cycle early, M60 unclamps and opens the side door, SERVICE REQUEST holds while the door is at its open end, the robot asks for the work clamp and reports the exchange done, the door shuts before the next cycle. bt.tending.fanuc_ri2 authors that as a sequence of its own, and the cell runs two programs:

hs = bt.tending.fanuc_ri2(scene, vmc, cycle_s=42.0, clamp_s=0.8, notice_s=5.0)
hs.signal("service_req")    # the name the robot's program waits on
hs.signal("clamp_req")      # the one it writes
tl = scene.simulate_sequences(["tend", hs.program])

Request and acknowledge run on levels, the PLC way: the robot raises clamp_req, the machine answers clamp, the robot drops the request once it sees the answer; service_ok goes up after the arm is out and comes down when it is home. The template also declares the CNC as an I/O node hosting the machine's program, so the derived I/O list shows the handshake as wires between two controllers and the PLCopen export carries the machine's POU on a resource of its own.

bt.tending.manual is the retrofit: no interface, the robot presses UNCLAMP, CLAMP and CYCLE START on the panel and slides the door itself. The machine program waits on the buttons' rising edges — and on the door's closed lane for the start, so a start pressed with the door open is ignored, the way a guard interlock ignores it, and the bake reports the deadlock naming the step. bt.tending.haas_autodoor is the Haas vocabulary — M80/M81 work the door only while the cell-safe input is on, cycle start closes it — and bt.tending.generic the vendor-neutral request/acknowledge most relay interfaces reduce to, with signals={role: name} to carry the maker's own tags onto the I/O list.

Whatever the vocabulary, every template writes the same three guards into the machine's program, the way ISO 16090-1 has a machining centre written: the side door opens only with the front door closed (the machine has a closed switch on it, vmc.front_door_lane); a cycle starts only with the side door confirmed at its closed end — the switch, not the command; and nothing starts with the E-stop pressed (vmc.estop, the panel's mushroom). They are what the interlock table reads back as rows.

The multi-purpose hand

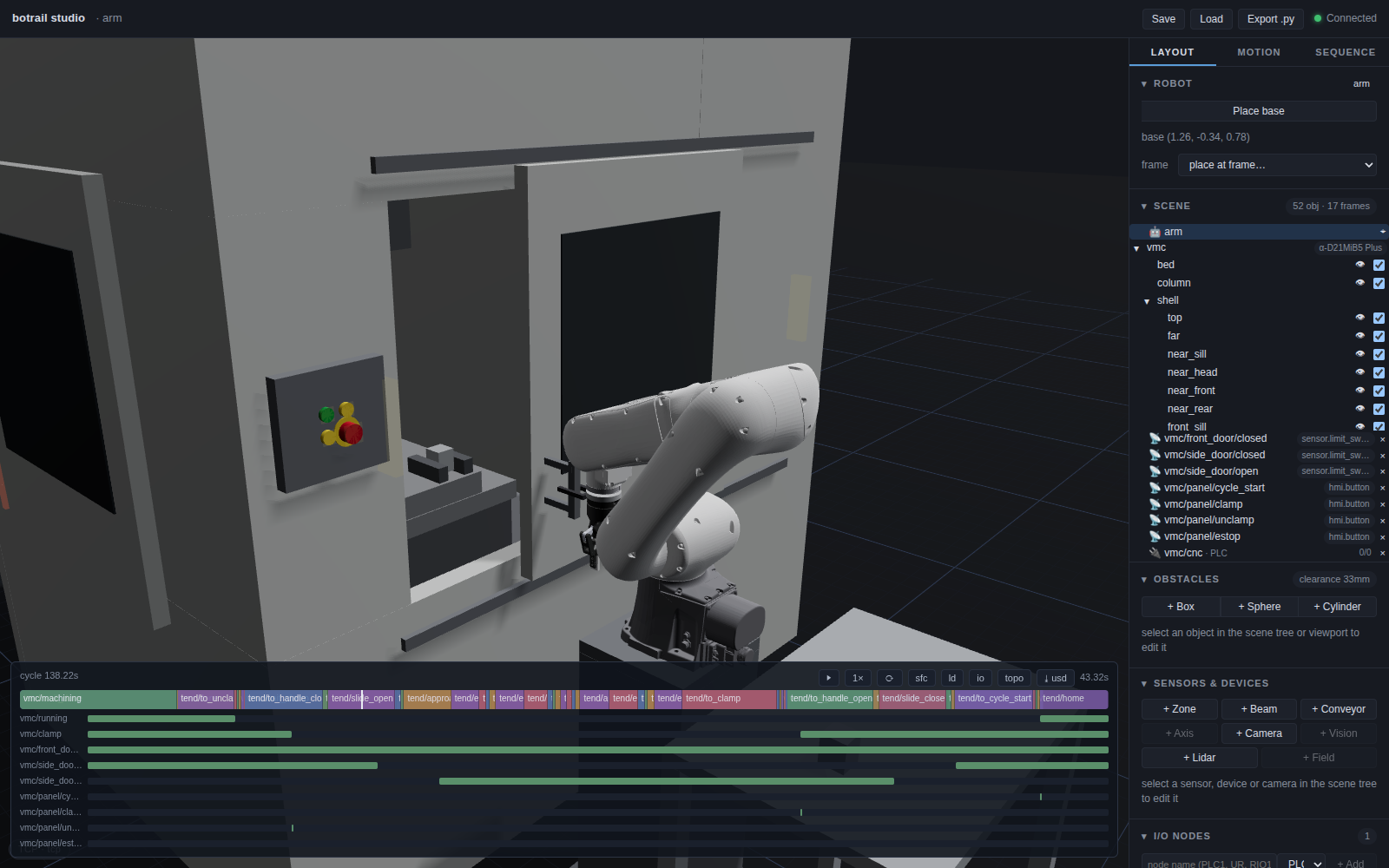

The end-effector in the other photograph is three tools on one bracket — a gripper for the workpiece, a pin for the buttons, a fork for the door handle — and the robot switches between them by turning its wrist so the right one faces the job. bt.tools.multi_tool builds that bracket as a joint-less robot model and attach_tool welds it on; the gripper bolts onto a Mount, and every Pin and Fork ends in a tip frame with +Z along the tool:

bracket = bt.tools.multi_tool("hand", [bt.tools.Mount("gripper"),
                                       bt.tools.Pin("pusher"),
                                       bt.tools.Fork("fork")])
hand = bracket.attach_tool(coupling, flange="hand_gripper").attach_tool(gripper)
robot = arm.attach_tool(hand)            # tcp stays the gripper's

scene.set_tcp_target(press, quat, link=bt.tools.tip("hand", "pusher"))   # the pin on a button
sq.step("hook", actions=[bt.seq.attach(leaf, link="hand_fork")])         # the door on the fork

Nothing else changes. A pose is taught for whichever tip does the job (link=), IK asked for a tip moves the arm and leaves the fingers where they are, the bracket's pin and prongs are collision geometry like any link, and the studio's TCP selector aims the gizmo at any of them. The demo works the machine this way: the pin presses square into the caps with no tilt to think about, the fork takes the handle bar between its prongs and the leaf goes wherever the fork goes.

The hand in the demo is a catalog product — botrail/hand/mph3 (tool.multi), whose URDF is generated from exactly this bt.tools layout — so it is ordered like the arm and the gripper and lands on the bill with its number:

hand = bt.Robot.from_catalog("botrail/hand/mph3")       # mount and flange declared
robot = arm.attach_tool(hand.attach_tool(coupling).attach_tool(gripper))

A bracket you lay out yourself has no number of its own; pin it by its row on the bill (scene.set_part("arm/tool", kind="tool", ...), see Parts and the BOM).

What the bake says

Every lane of the handshake is on the chart in the order it happened — door, request, clamp, buttons — and readable with timeline assertions:

assert tl.signal("vmc/side_door/open").rising_edges()[0] <= tl.step_span("tend/enter").start
assert tl.signal("vmc/side_door/closed").rising_edges()[-1] > tl.step_span("tend/exit_2").end
assert tl.signal("vmc/panel/estop").high_spans() == []

The bill lists the machine, its door with the drive and the stroke, the panel and each button with its head size, travel and force, the vise and the stand; the I/O list, the topology and the PLCopen file come from the same source. See the I/O map and offline commissioning.

Two machines, one arm

examples/machining/two_machine_cell_demo.py stands two ROBODRILL-sized machines facing each other across an aisle, the arm on its stand between their side doors and a bench per machine beside it, and teaches the far machine with the same machine_tending_demo.teach / program as the near one — prefixed a_ / b_, the shared park motion once. Each machine runs its own bt.tending.manual program; the arm's program serves A, then B. With a part program longer than the swap, the arm is the constraint, and the bake says by how much: tl.utilization("arm") for the arm, the running lane's high time for each spindle. The interlock table then carries three programs, the PLCopen file three resources (arm, vmc_a_cnc, vmc_b_cnc), and the handshake spec both CNCs.

Two things the far machine taught: a machine straight behind the base sits at J1 = ±π, and the IK converges from one winding and not the other, so the teach seeds both; and a straight-line move (take the handle, slide, let go) must stay on one IK branch end to end, so the four handle poses are solved as a chain from the tightest one, never each from its own seed.

Handing over

The demo's deliver() writes the cell's document set from the one source — and three of its pages are what a machine-tending cell is handed over with in particular:

• The interlock table (scene.interlocks()): every output of both programs against the condition that admits it. The machine's cycle_start row reads (RISING(vmc/panel/cycle_start) AND vmc/side_door/closed AND vmc/front_door/closed AND NOT vmc/panel/estop) — the three guards, as the control designer would write them down — and names the buttons as sensors on the CNC; the robot's to_unclamp row waits on NOT vmc/running and names the machine's steps that write it, which is the handshake read across the table.
• The PLCopen file with the machine's program as a POU on the CNC's own resource (vmc_cnc) beside the arm controller's (arm), so each side's IDE takes its own — the machine builder's PMC logic is a deliverable, not a description.
• The layout sheet with the door: a driven door draws its leaf at the open end of its travel (dashed) with the travel arrow; a loose leaf its two limit switches at the ends of the stroke — the envelope a plan keeps clear of the stand and the stocker.

And the FAT rows: the faults a control designer would test for are authored as scenarios and run with the matrix —

scene.add_scenario("door_switch_stuck", faults=[bt.io.stuck(hs.signal("door_closed"), False)])
scene.add_scenario("clamp_button_open", faults=[bt.io.open("vmc/panel/clamp")])
scene.add_scenario("estop_pressed", faults=[bt.io.stuck(hs.signal("estop"), True)])
runs = scene.simulate_scenarios(["tend", "vmc"], max_duration=160.0)
report = scene.cell_report({"baseline": tl}, scenarios=runs, deliverables=files)

— and the report's scenario matrix shows the baseline through and each fault refused: the closed switch that never makes and the E-stop in stall the machine at wait_start, the open wire on CLAMP at wait_clamp. The report's Machines section lists the machine with its door (drive, stroke, the lanes), its buttons and the controller hosting its program.
